Industrial Grade Wireless Temperature Sensor System for Ultra-Low Temperature (ULT) Freezers

$449.00

Ultra-low temperature (ULT) sensor system gives continuous remote monitoring of the internal temperature of ultra-low temperature (ULT) freezers. Set alerts via phone, text, or email to know about issues even if you’re not on-site. Streamline auditing processes. Ideal for temperature-critical applications such as laboratories, medical facilities, vaccine storage, medicine storage.

This remote monitoring system for ULT freezers is designed with key features exclusive to Leap Sensors:

  • High accuracy RTD sensing at ultra low temperatures – as low as -196ºC (-320ºF).
  • Temperature probe is verified and calibrated at 3 points: -60ºC, -40ºC, and +5ºC (-76ºF, -40ºF, and +41ºF)
  • Optional industrial door-open sensor helps troubleshoot temperature alerts, as well as tracking each time the door is opened. Time that door is left open is reported – and alarms can be set on excessive door-open time.
  • Optional wall transformer powers the sensor and also alerts power outages. On-board battery backup assures sensor node operation during power outages.

Contact us to find the best combination of features for your facility.





Build your quote here:

Add to Quote

Description


Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

Wireless Ultra-Low Temperature (ULT) Freezer Sensor Specifications

Temperature Sensor Specifications

  • High-accuracy RTD 100 ohm Class A PT100 temperature probe can read from -196ºC to +450C (-320ºF to +842F)
    • 3-wire configuration factors out changes in cable resistance to assure accurate temperature reading.
    • Probe tip size: 3/16 inch diameter, 1.3 inches long (5mm diameter, 33mm long)
  • Verified and calibrated at 3 points: -60ºC, -40ºC, and +5ºC (-76ºF, -40ºF, and +41ºF)
    • Temperature Accuracy (typical): +/- 1.0ºC (1.8ºF) in the calibrated range. Option for calibration certificates
  • Cable and probe connect to the enclosure with a cable gland and is not detachable to assure the calibrated probe stays with the node that it was calibrated with.

Cable Specifications

  • PFA cable, 6-feet (1.8 m) standard length
  • Cable is temperature rated from -200ºC to +250ºC (-328ºF to +482ºF)
  • Cable should not be bent during installation if temperature is below -50ºC (-58ºF)

Optional Features

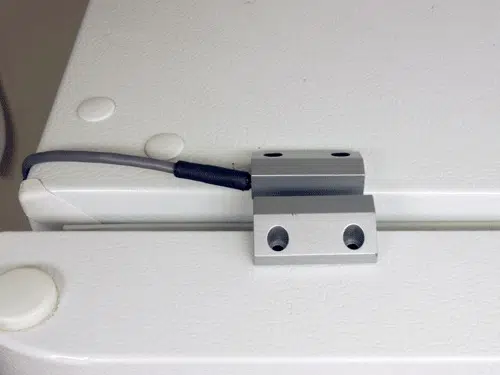

  • Industrial door-open sensor transmits every time door is opened, streamlining tracking as well as helping to troubleshoot temperature alerts. Simple installation assures long-term reliable operation.
  • Wall transformer with battery backup also acts as power outage alert.

Other Features

  • Fast and easy installation with the hook and loop and foil stickers. Special adhesive sticks to cold surfaces.
Contact Us

Prices, Quotes, Questions...

Need a price or quote? Have questions? Want to talk to an expert? Need a custom solution?

Contact Us

This wireless Ultra-low temp (ULT) sensor is ideal for monitoring:

  • Lab sample freezers
  • Pharmacy freezers
  • Scientific freezers
  • Hospital freezers
  • Medical freezers

Patents pending.
