Industrial Grade Wireless Pressure Sensor

Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

Wireless Pressure Sensor Specifications

• The Leap wireless sensor electronics can be integrated with a wide range of WIKA pressure sensors that have 4-20 mA and 0-10V outputs.
• The Leap sensor has an option to provide 0 to 24V to power the pressure sensor from the Leap long-life battery – making the sensor truly wireless.  See the LP-1XXX option.

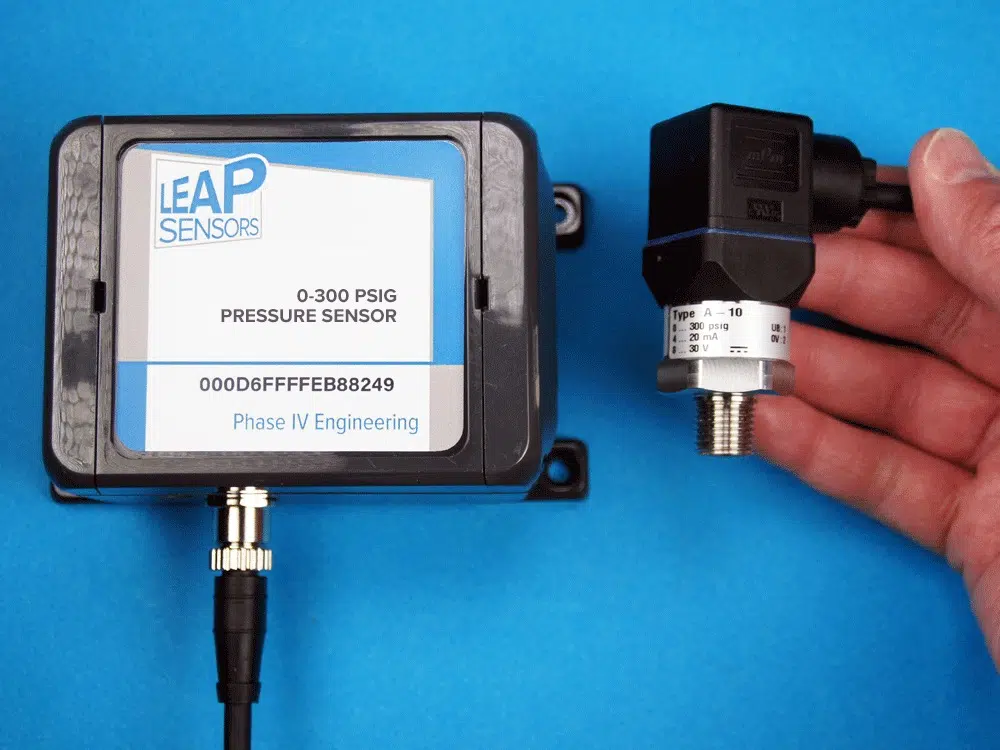

• Industrial WIKA 4-20 mA A10 pressure transducers are the most common sensor used with the Leap wireless node.  See the A10 datasheet and a list of standard part numbers on the “Standard articles” tab on the A10 product page.
• 24-bit resolution across the full range.
• Contact Us to integrate an application-specific pressure sensor with the Leap Sensors wireless system.

Leap Wireless Sensor Transceiver Node Specifications

See the data sheet (above) for detailed specifications.

Leap Wireless Sensors Gateway (Receiver) and User Interface Software

• See the Leap Sensors gateway page and the Leap Sensors User Interface options page for more detailed information.

*Custom-ordered leap sensors are available with a direct-to-cellular option where no gateway is needed and the data is sent directly to a cloud server. Contact us for more information.

This wireless sensor is ideal for monitoring:

• Water pressure wireless pressure sensor
• Compressed air wireless pressure sensor
• Nitrogen wireless pressure sensor
