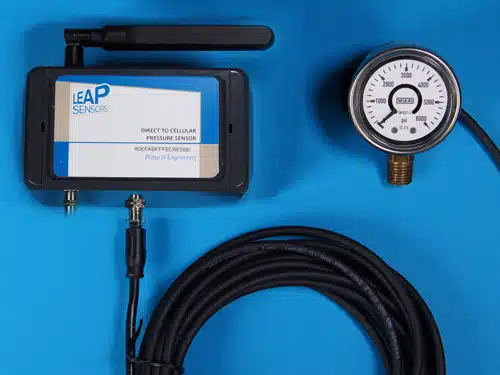

cellular wireless pressure gauge

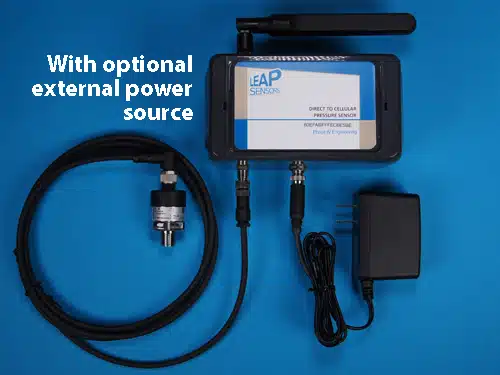

direct to cellular wireless pressure sensor with external power source
Industrial Grade Cellular Connection Wireless Pressure Sensor - Image 4
Industrial Grade Cellular Connection Wireless Pressure Sensor - Image 5
Industrial Grade Cellular Connection Wireless Pressure Sensor - Image 6
Industrial Grade Cellular Connection Wireless Pressure Sensor - Image 7
Industrial Grade Cellular Connection Wireless Pressure Sensor - Image 8

Industrial Grade Cellular Connection Wireless Pressure Sensor

$899.00

Wireless pressure transceiver integrates with every type of WIKA pressure transducer – 4-20mA, 0-10V, and I2C outputs.

This version transmits directly to a cellular tower and does not require a gateway to pass the data to cloud software. Ideal for remote locations or for installations without power for a gateway.

The external industrial sensor may be powered by an optional 12 or 24V power supply driven from the over-sized dual-D Leap Sensor node battery.  No external power source is needed with the 12/24V power supply option.  The Leap transceiver node may also be optionally powered by an external voltage source. See below for other options to configure this industrial wireless sensor node to your exact needs.

Contact us to find the best combination or let us know which WIKA sensor you would like us to integrate.

Data Sheet



Part of the breakthrough Leap Sensors® system.

Learn More About Leap Sensors



Build your quote here:

Add to Quote
SKU: CHCM-1PXX Categories: , , Tags: , , , ,

Description

Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

Cellular Connection Wireless Pressure Sensor Specifications

  • Sensor communicates to cloud software using cellular communication. No gateway is required.
  • Sensor electronics can be integrated with a wide range of WIKA pressure sensors with 4-20 mA or 0-10V outputs.
  • Option to provide 0 to 24V to power the pressure sensor from a long-life battery – making the sensor truly wireless.

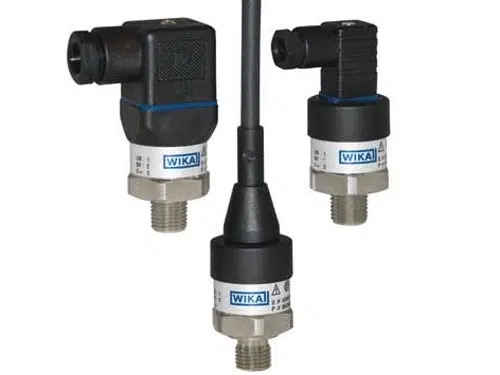

  • Industrial WIKA 4-20 mA A10 pressure transducers are the most common sensor used with the Leap wireless node.
  • 24-bit resolution across the full range.
  • Battery life estimate: 8 year battery life when transmitting every 8 hours. 2.75 year battery life when transmitting once per hour. 1 year battery life when transmitting every 20 minutes.
  • Contact Us to integrate an application-specific pressure sensor with the Leap Sensors wireless system.
Learn More About Leap Sensors
Contact Us

Prices, Quotes, Questions...

Need a price or quote? Have questions? Want to talk to an expert? Need a custom solution?

Contact Us

The cellular connection wireless pressure sensor is ideal for:

  • Remote water pressure monitoring
  • Remote compressed air monitoring
  • Remote nitrogen monitoring
  • Remote pressure monitoring

Patents pending.
