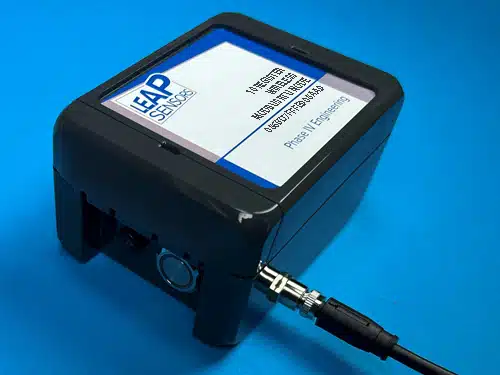

Industrial Grade Wireless Modbus RTU 10-Register Sensor

Leap Sensors are specially designed to easily adapt to your specific needs. If this isn’t exactly what you need, please contact us.

Modbus RTU Wireless Sensor Specifications

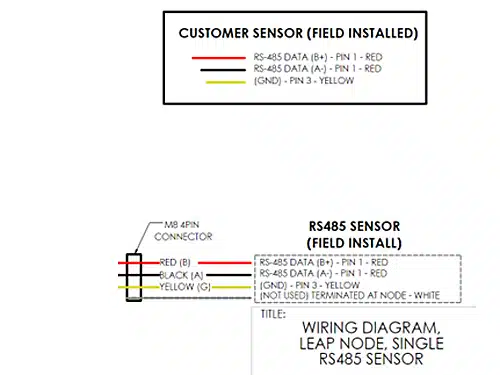

• Wireless transmission of up to 10 Modbus sensor values over a single-ended RS485 digital interface.

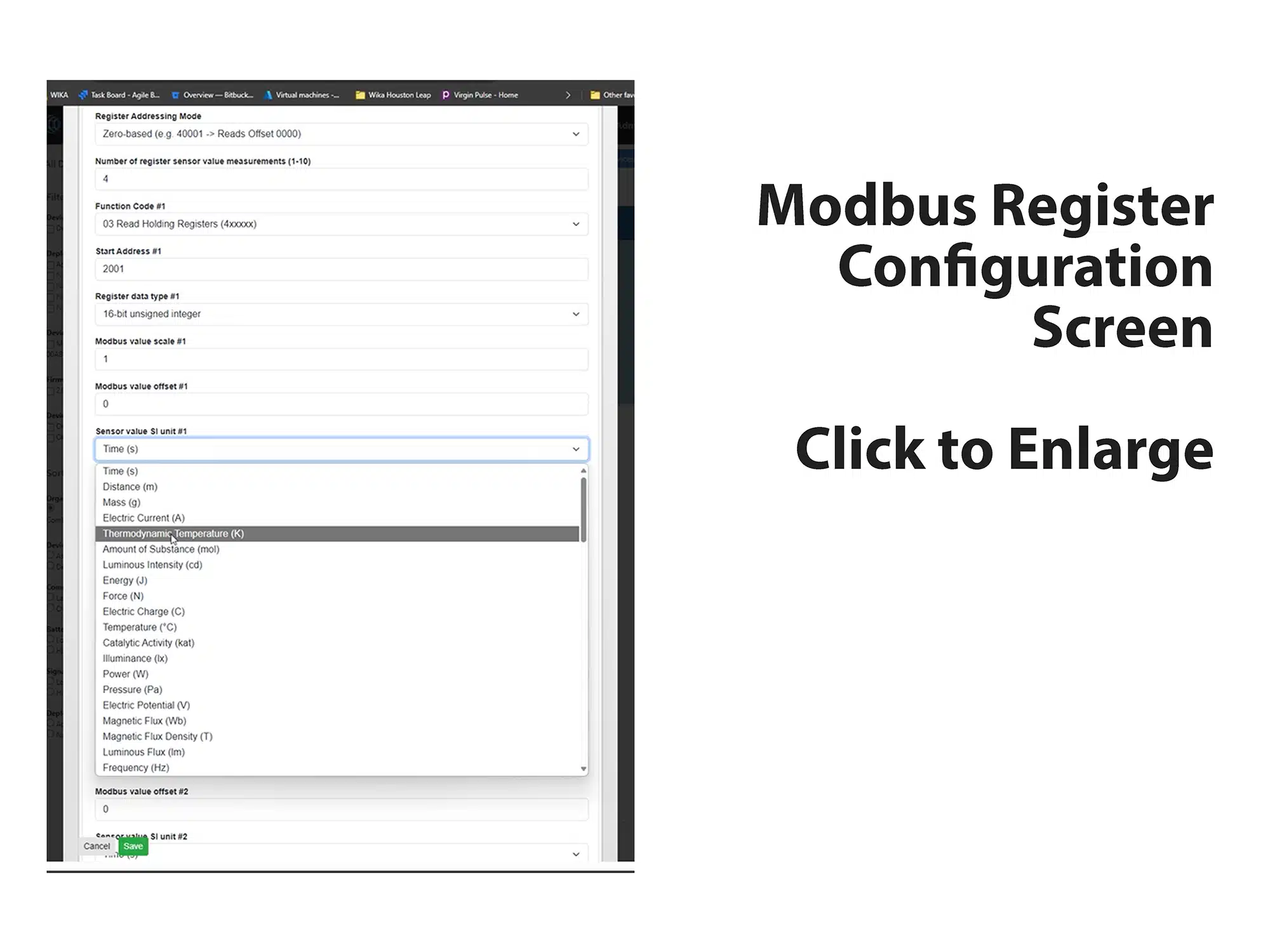

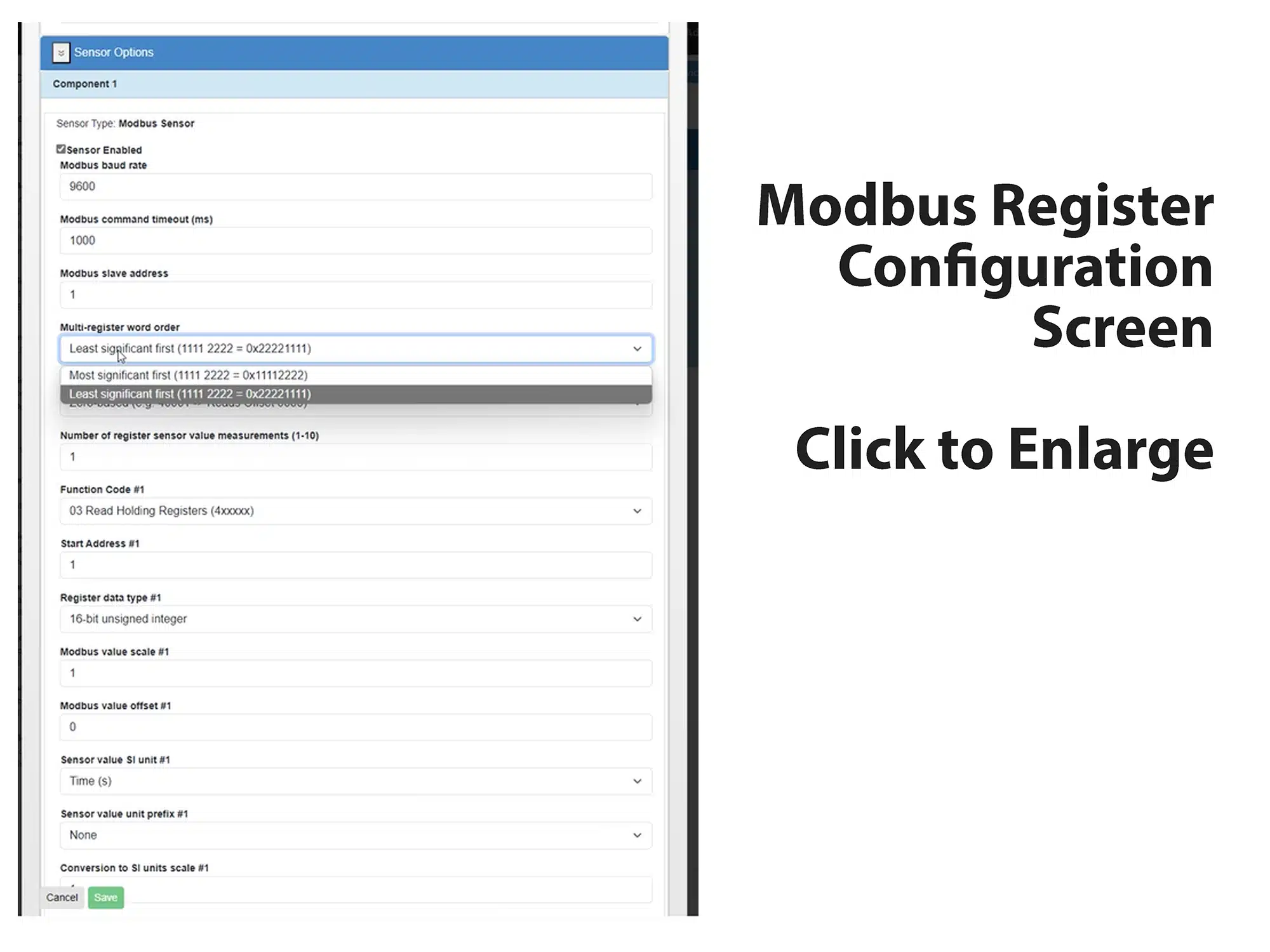

• Configure the node to read up to 10 Modbus registers. The configuration interface scales the data and adds units of measure to make the data useable and actionable.
• Ideal for in-process monitoring data from a variable frequency drives (VFD) and other industrial equipment with a Modbus RS485 RTU interface. Note: many types of digitally controlled industrial equipment offer an option to add a Modbus RTU interface card.
• Read data such as temperature, RPM, electric current draw.
• Read (and scale) up to 10 Modbus RTU sensor readings. Each of the 10 readings will read as many registers as needed to fit the selected data type in the configuration.

*Custom-ordered Leap sensors are available with a direct-to-cellular option where no gateway is needed and the data is sent directly to a cloud server. Contact us for more information.

The wireless Modbus RTU 10-register sensor is ideal for:

• In-processing monitoring of equipment with a Modbus RTU interface
• Monitoring variable frequency drives (VFDs)
